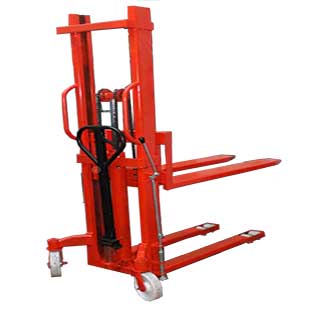

MANUAL HYDRAULIC STACKER :-

Hydraulic Stacker is low maintenace, cost effective material handling equipments used in prodtion area and loading/unloding material from vehicles. used for die loading/unloading also.

Features:

  • Compact design, Strong & Robust steel structure.
  • Top quality hydraulic pump NIE make for MH Model.
  • Heavy Duty twin chain for better load stability (Diamond MAKE).
  • Piston (ITALY).
  • Special reinforcement in Forks.
  • Hydraulic regulator for lowering speed conrol.
  • Wheels provided with double ball bearing.
  • Ultra high molecular weight, (UHMW) Polymer Wheels.

Specifications:

Model No. Capacity Rigid Stacker
Max Fork HT. Max Mast HT.
KG MM MM
NIE-06-11(LD) 650 100 1530
NIE-06-13(LD) 650 1350 1780
NIE-06-16(LD) 650 1600 2030
NIE-10-11(HD) 1000 1100 1530
NIE-10-13(HD) 1000 1350 1780
NIE-10-16(HD) 1000 1600 2030
Model No. Capacity Max. Fork HT. Telescopic Stackers
Mast HT. Min Mast HT. Max
KG MM MM MM
NIE-06-20(LD) 650 2000 1530 2480
NIE-06-25(LD) 650 2500 1780 2980
NIE-06-30(LD) 650 3000 2030 3480
NIE-10-20(HD) 1000 1100 1530 2480
NIE-10-25(HD) 1000 2500 1780 2980
NIE-10-30(HD) 1000 3000 2030 3480
