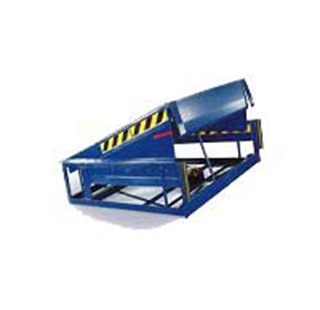

Dock Leveller bridges the gap between the loading dock & the vehicle. Most vehicles come with bed height either above or below the dock.The Dock Leveller moves up & down to meet the truck bed height enable forklifts & other work trucks to move in out of the vehicles. It reduces lot of labour cost, improves work efficiency & safety.
Special Features :
Specifications:
| Model No. | NIE- DL 6030 | NIE- DL 9030 |
|---|---|---|
| Capacity (KGs) | 6000 | 9000 |
| Length(MM) | 3000 | 3000 |
| Width(MM) | 1850 | 2100 |
| Depth "A"(MM) | 595 | 595 |
| LIP Extension(MM) | 400 | 400 |
| Working Range "A1"(MM) | 370 | 275 |
| Workin Range "A2"(MM) | 370 | 275 |
| Maximum Platform Lift "A"+"A1"(MM) | 965 | 965 |
